RAM Mounts Diamond Base with 1.5" Ball

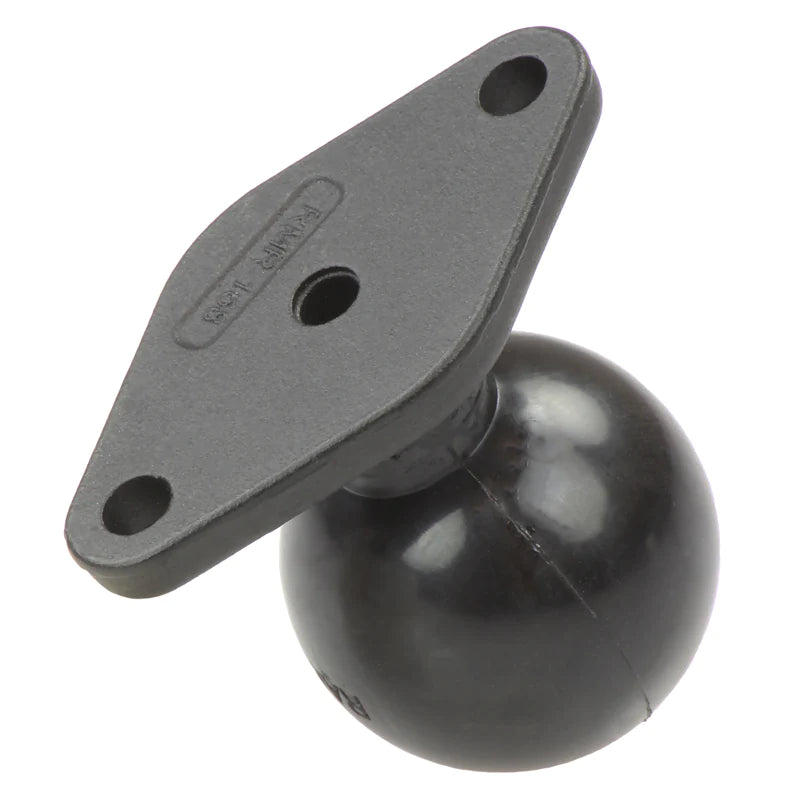

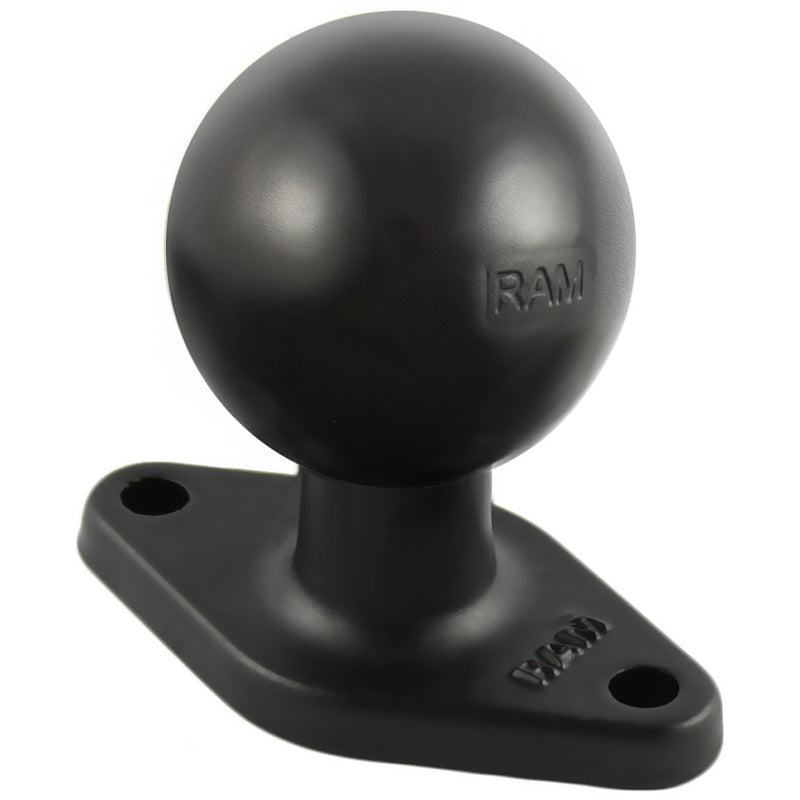

The RAM-238U ball base is a powder coated marine grade aluminum base and consists of a 1.5" C size rubber ball connected to a 2.43" x 1.31" diamond plate.
The diamond plate features two holes that measure 1.912" from center to center, matching the industry-standard AMPS hole pattern.
This diamond ball base is compatible with a wide variety of RAM® device holders and cradles.
Hole Pattern: 2-Hole AMPS 1.912"
Plate Size: 2.43" x 1.31"
Ball Size: C Size (1.5")
Weight Capacity:
- Standard Use: 4 lbs
- Heavy-Duty Use: 3 lbs
Weight: 0.2 lb
Additional Information:
Weight: 0.09 kg
