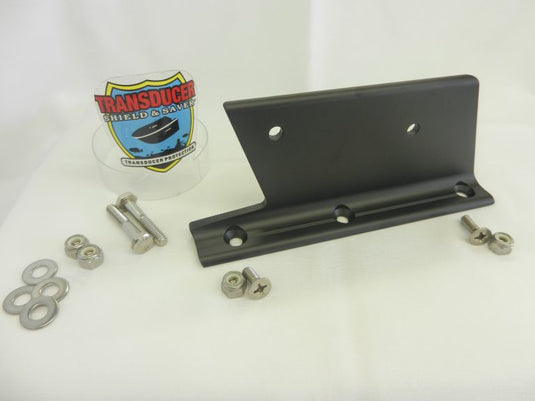

The LB-RH-6 L Bracket is built using high quality aluminum alloy, is black powder coated and includes stainless steel hardware. It is designed to fit a Rite-Hite jack plate.
Please remember that a transducer cannot be attached to an L Bracket without a Transducer Shield®.
A Rite-Hite jack plate is made up of four pieces of angle and one tube which joins the pieces together. If the angle at the back (engine side) is lower than the angle at the front (transom) it will be necessary to add the Extender Plate to the L Bracket. The Extender Plate is used to fill the void between the two sides.
Please note that when the transducer is attached to a set back, hole shot plate or the side of a jackplate, it will not track the bottom when up on plane because the transducer is out of the water. For bottom reading on plane, a transducer inside the hull will be required.
