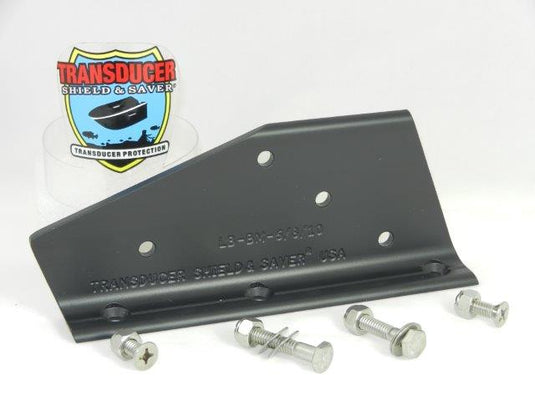

The LB-BM-6/8/10 L Bracket is built using high quality aluminum alloy, is black powder coated and includes stainless steel hardware. It's designed to attach a Transducer Shield® to the side of a 6", 8" or 10" Bob's Hydraulic Jack Plate.
Please remember that a transducer cannot be attached to an L Bracket without a Transducer Shield®.
An Extension is required if you have a Skeeter ZX model boat. On this particular boat the hull turning chines interfere with the side viewing signal. To help correct this problem it is necessary to add an extension between the L Bracket and Transducer Shield® to lower the transducer.
On Bass Cat Boats, it is necessary to add a 1.5 extension between the L Bracket and Transducer Shield®
Please note that when the transducer is attached to a set back, hole shot plate or the side of a jackplate, it will not track the bottom when up on plane because the transducer is out of the water. For bottom reading on plane, a transducer inside the hull will be required.
