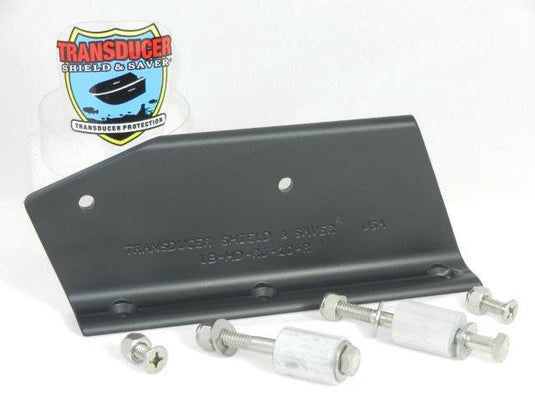

The LB-HD-RJ-10-R L Bracket is built using high quality aluminum alloy, is black powder coated and includes stainless steel hardware. It is designed to fit the 10" or 12" Hydro Dynamics Rapid Jack jack plates. If you have a 6" or 8" Hydro Dynamics Jack Plate, use the LB-3-RW L Bracket.
Please remember that a transducer cannot be attached to an L Bracket without a Transducer Shield®.
On Skeeter ZX model boats the hull turning chines interfere with the side viewing signal. To help correct this problem it is necessary to add a 1.5" or 2" extension between the L Bracket and Transducer Shield®. Add a 1.5” extension to your Skeeter ZX if your transducer a Lowrance® LSS1, LSS2, Total Scan or Structure Scan 3D or Raymarine® Real Vision 3D.
Please note that when the transducer is attached to a set back, hole shot plate or the side of a jackplate, it will not track the bottom when up on plane because the transducer is out of the water. For bottom reading on plane, a transducer inside the hull will be required.
