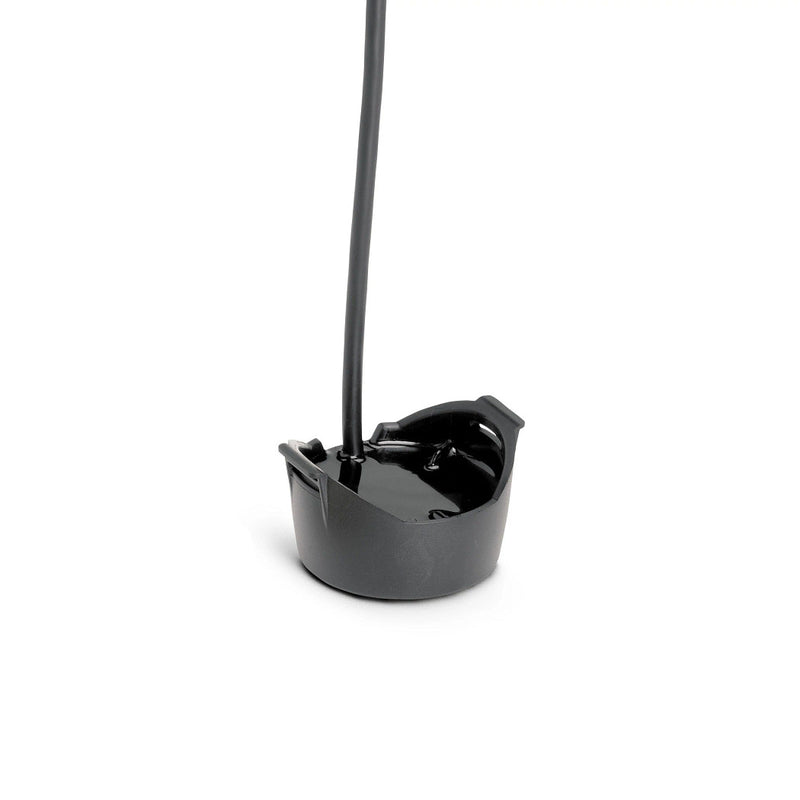

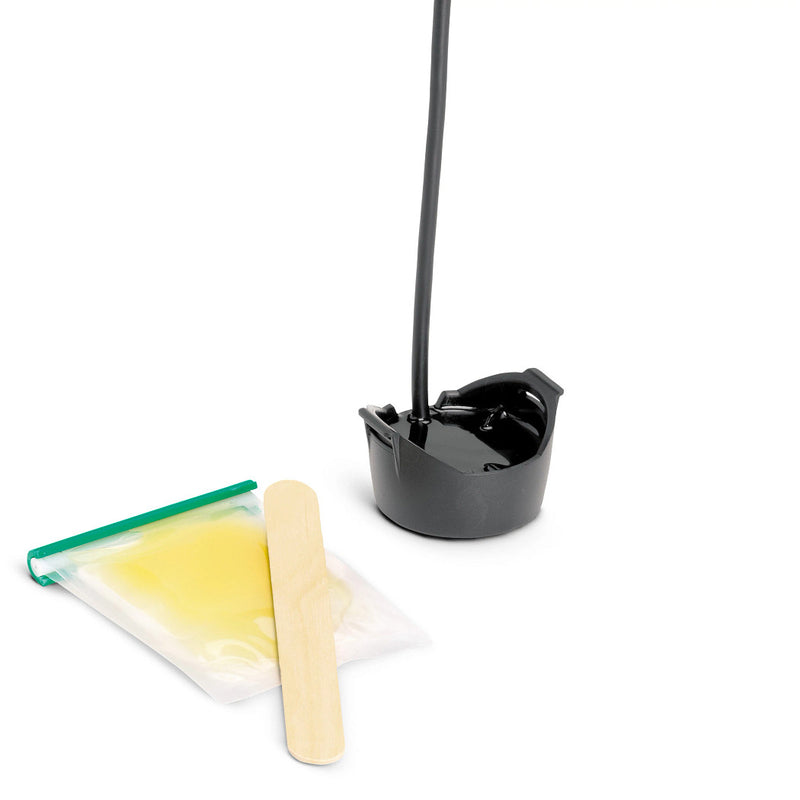

XP 9 HW
In Hull Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. For use in single layer fiberglass hull. No temperature.
Features:
- Compatible with: HELIX 5 CHIRP G2/G3 – GPS-equipped models only, HELIX 7 CHIRP G2/G3/G4 – GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N/G4N – All models, HELIX 8 CHIRP G3N/ G4N – All models, HELIX 9 CHIRP G2N/G3N/G4N – All models, HELIX 10 CHIRP G2N/G3N/G4N – All models, HELIX 12 CHIRP G2N/G3N/G4N – All models, ICE HELIX CHIRP G2/G3 and newer – All models (in Open Water Mode) Side Imaging™ and Down Imaging™ units can support this transducer as a 2D sonar only transducer.

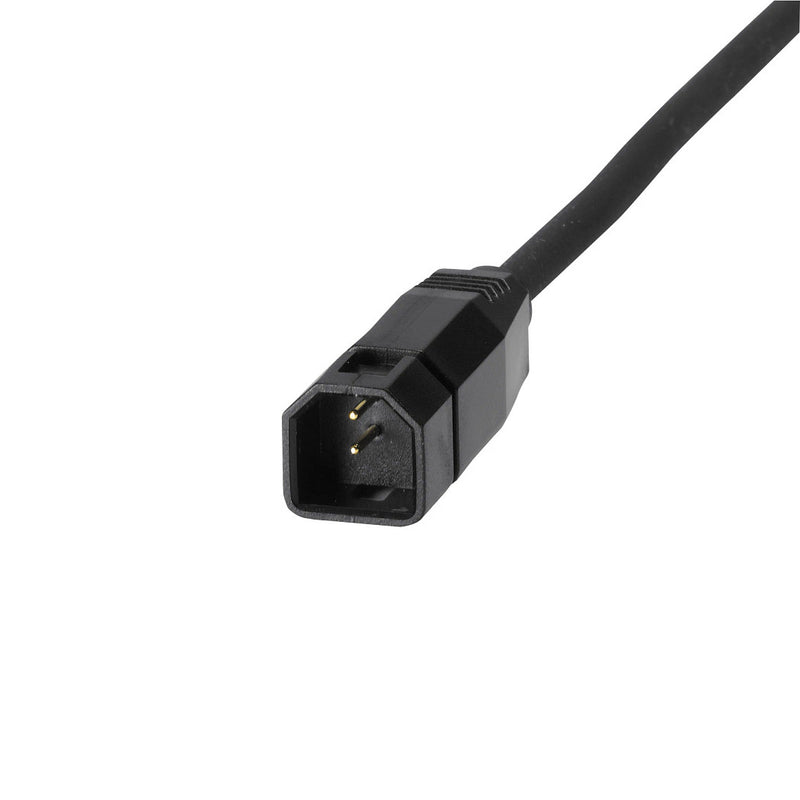

- Cable Length: 15 Feet
- Side Imaging™ and Down Imaging™ units can support the XP 9 HW as a 2D sonar only transducer. This transducerdoes not support Side Imaging or Down Imaging.
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHRIP Max Depth: 1200ft (365m)
- 1-Year Limited Warranty
Additional Information:
Dimensions: 9 x 7 x 4 inches
Weight: 0.36 kg
