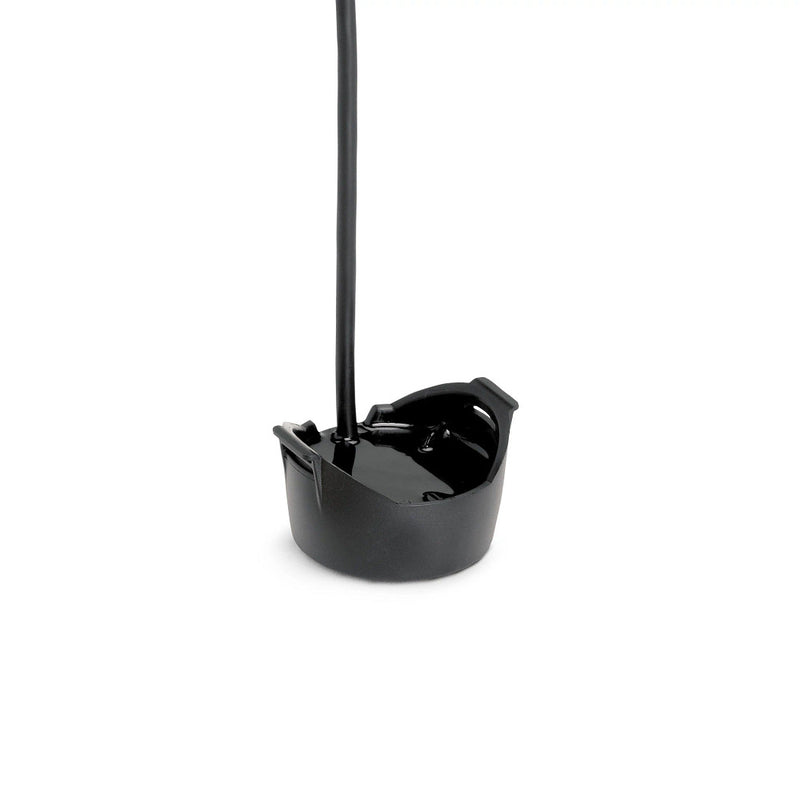

XP 14 HW
In-Hull Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. No temperature. For use in single layer fiberglass hull.
Features:
- Compatible with: All APEX, all SOLIX to the maximum capabilities of the transducer.
- Side Imaging™ and Down Imaging™ units can support the XP 14 HW as a sonar only transducer. This transducer does not support Side Imaging or Down Imaging.

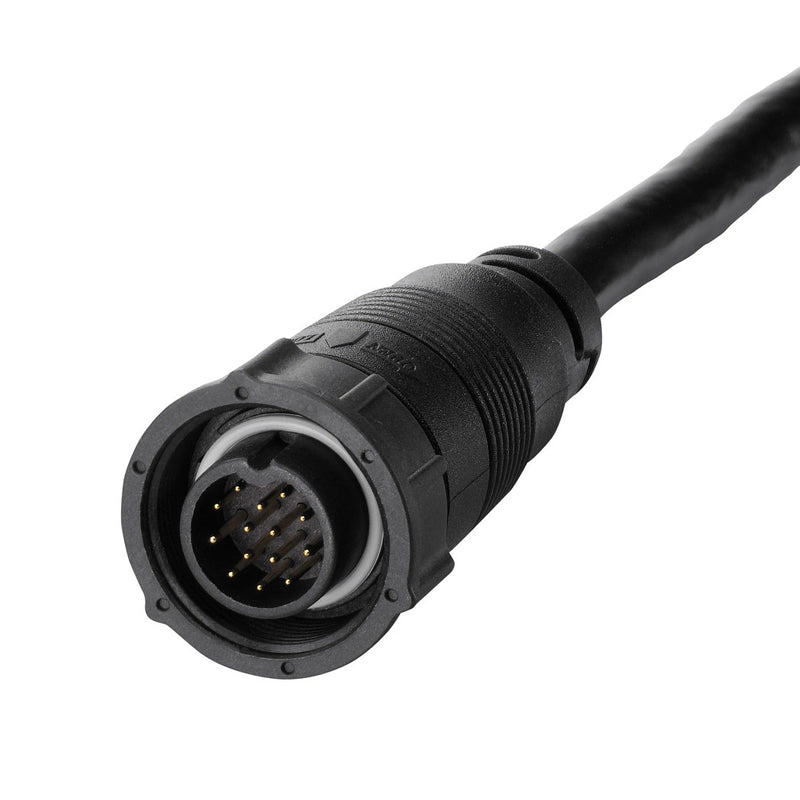

- Cable Length: 15 Feet
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)

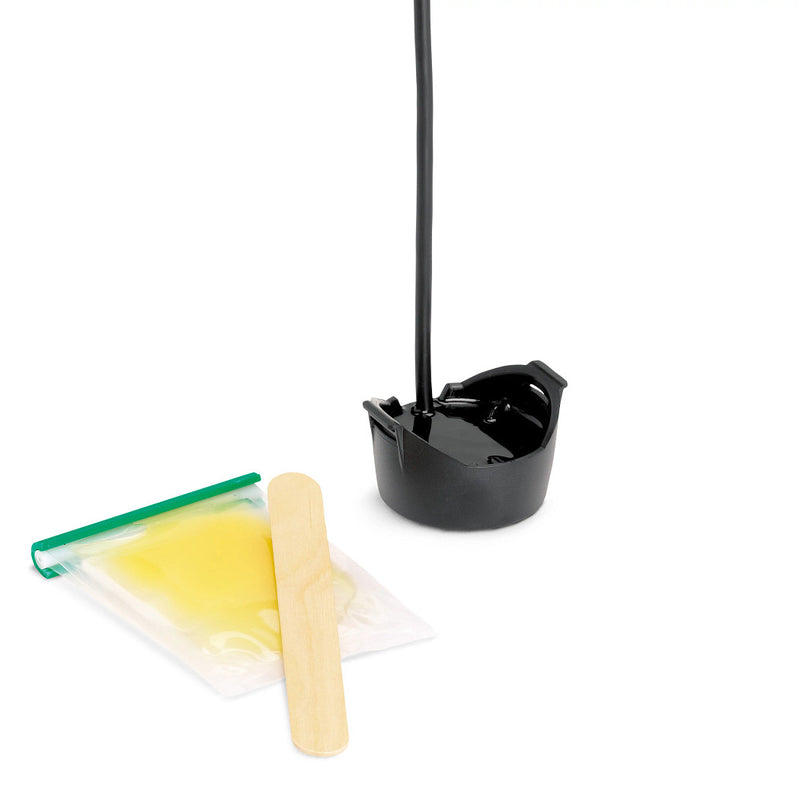

- Includes Epoxy Kit
- 1-Year Limited Warranty
Additional Information:
Dimensions: 10 x 8 x 7 inches
Weight: 0.52 kg
