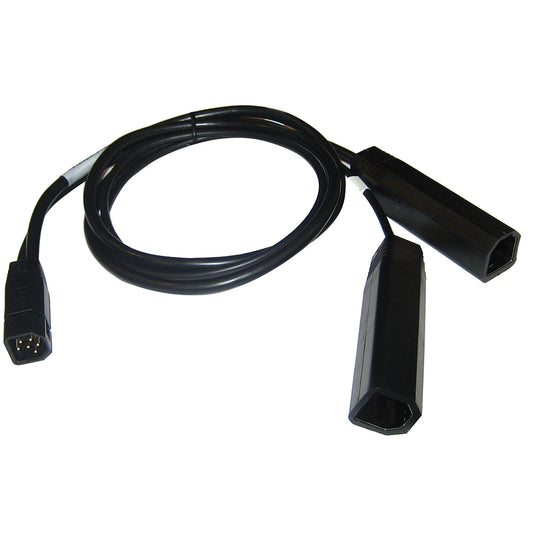

9 M SIDB Y - Side Imaging Dual Beam Splitter Cable
This 9-pin Y Cable allows you to use two transducers on one unit without the use of a transducer switch.
Features:
- Compatible with: All Side Imaging or Down Imaging products, except APEX, SOLIX or ONIX
- Cable Length: 30"
- Y Cable - Side Imaging and Dual Beam - allows you to use two transducers on one unit without the use of a transducer switch.
- Commonly used with Side Imaging products, in conjunction with a dual beam transducer for improved high speed performance and bottom tracking.
- Supports MEGA Side Imaging
- 1-Year Limited Warranty
Specifications:
| Model | 9 M SIDB Y - HELIX Side Imaging & 2D Sonar Splitter Cable |
| Product Code | 720101-1 |
| UPC | 0082324052354 |
| Current Models | HELIX 10, HELIX 9, HELIX 8, HELIX 15, HELIX 7, HELIX 12, HELIX 5 |
| Discontinued Series | 800 Series, 300 Series, 700 Series, 1100 Series, 500 Series, 900 Series |
| Length | Less than 10 ft |
| Type | Transducer Adapter Cables |
| Warranty | One-Year Warranty |
Additional Information:
Dimensions: 9 x 7 x 2 inches
Weight: 0.18 kg
