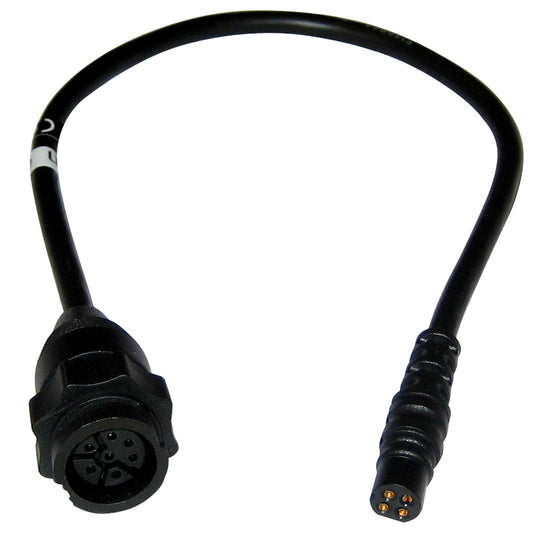

MotorGuide Adapter Cable For 4 Pin Units

MotorGuide Adapter Cable For 4 Pin Units

Trolling Motor Transducer to 4-Pin Fishfinder Adapter Cable

These adapter cables allow you to connect a compatible Garmin unit to a MotorGuide trolling motor transducer.

Compatible Garmin units w/8-pin connector:
echo™ series, echo dv series

Compatible MotorGuide trolling motors:

Tour - Sonar:

• TR75L FBD 45" 24V 20.8MT- Part # 930010450

• TR82L FBD 45" 24V 21MT - Part # 930011020

• TR82L FBD 50" 24V 21MT - Part # 930011030

• TR82L FBD 60" 24V 24MT - Part # 930011040

• TR109L FBD 45" 36V 21MT - Part # 930011050

• TR109L FBD 50" 36V 21MT - Part # 930011060

• TR109L FBD 60" 36V 24MT - Part # 930011070


Wireless Sonar:

• W55L 54" 12V w/ Foot Pedal - Part # 970100100

• W75L 48" 24V w/ Foot Pedal - Part # 970100110

• W75L 60" 24V w/ Foot Pedal - Part # 970100120


Xi5:

• Xi5-55FW 48" 12V FP SNR - Part # 940800190

• Xi5-55FW 54" 12V FP SNR - Part # 940800200

• Xi5-80FW 54" 24V FP SNR - Part # 940800110

• Xi5-80FW 60" 24V FP SNR - Part # 940800120

• Xi5-105FW 54" 36V FP SNR - Part # 940800150

• Xi5-105FW 60" 36V FP SNR - Part # 940800160

• Xi5-55FW 45" 12V FP SNR GPS - Part # 940800210

• Xi5-55FW 54" 12V FP SNR GPS - Part # 940800220

• Xi5-80FW 45" 24V FP SNR GPS - Part # 940800270

• Xi5-80FW 54" 24V FP SNR GPS - Part # 940800230

• Xi5-80FW 60" 24V FP SNR GPS - Part # 940800240

• Xi5-105FW 54" 36V FP SNR GPS - Part # 940800250

• Xi5-105FW 60" 36V FP SNR GPS - Part # 940800260
