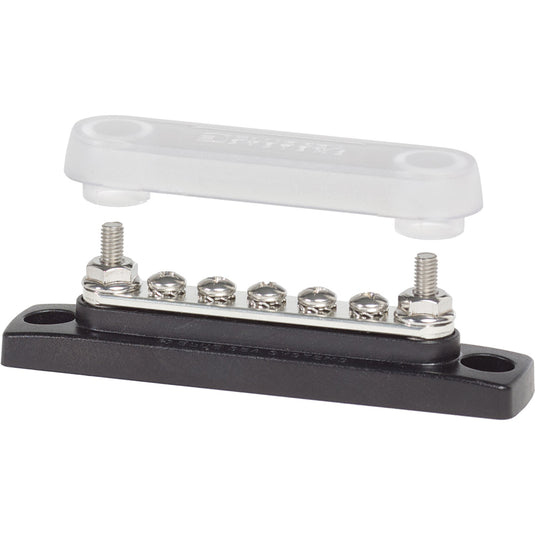

MiniBus 100A Common BusBar 5 x 8-32 Screw Terminal with Cover
PN: 2314
Additional Information:
Dimensions: 6 x 1 x 1 inches
Weight: 0.09 kg
PN: 2314
- Great for limited space applications in electronics cabinets and under dashboards
- Snap on insulating cover attaches to studs and allows unobstructed wire access
- Raised bus provides easy access to multiple wires on a single screw
- Pressed on busbar eliminates the need for securing nut
- Stainless steel studs allow high torquing for excellent electrical contact
- Tin-plated copper bus for maximum conductivity and corrosion resistance
= - Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
- Captive star type lock washers meet CE requirements for anti-rotation and eliminate handling of small, easily dropped parts
- Stainless steel Phillips screws for easier installation and resistance to stripping
- UL 94-VO rated base material resists high heat
| Continuous Amperage | 130As AC/DC |
| Maximum Voltage Rating | 300 Volts AC/48 Volts DC |
| Bus Material | Tin-Plated Copper CDA 110/UNS11000 |
| Base Material | Reinforced Polycarbonate |
| Cover Material | Clear Polycarbonate |
| Weight | 0.17Lb |
