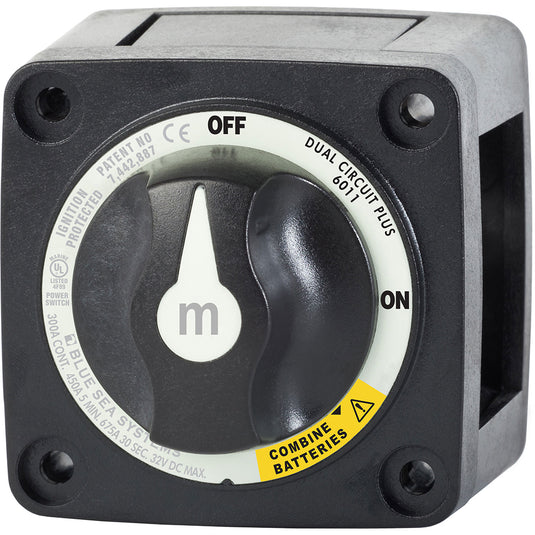

Blue Sea m-Series Mini Dual Circuit Plus Battery Switch
m-Series Mini Dual Circuit Plus Battery Switch - Black
Simultaneously switches two isolated battery banks or combines battery banks to all loads.
Make before break contact design allows switching between battery banks without power interruption.
Switch Type: Dual Circuit Plus
Color:Black
Switch Positions:3
Battery Combine:Yes
Alternator Field Disconnect: No
Maximum Voltage:32V DC
Continuous Rating :300A
Intermittent Rating :450A (5 min)
Cranking Rating 10 sec: 1000A
Cranking Rating 1 min: 650A
Battery Inputs:2
Cable Clearance For 4/0 AWG Cables:1.12in (28.45 mm)
Cable Size to Meet Ratings:4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw
Terminal Stud Size:3/8"-16 (M10)
Terminal Stud Torque:120 in-lb (13.56 Nm)
Weight:0.80lb (0.36 kg)
Additional Information:
Dimensions: 7 x 4 x 3 inches
Weight: 0.27 kg
