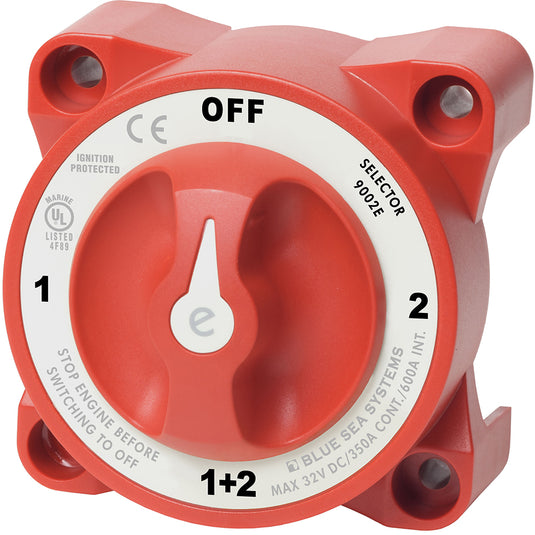

Blue Sea e-Series Battery Switch With Alternator Field Disconnect
9002e e-Series Battery Switch Selector with Alternator Field Disconnect
Features:
- Switches isolated battery banks to all loads or combines battery banks to all loads
- Includes AFD (Alternator Field Disconnect)
- Make-before-break contact design allows switching between battery banks without power interruption
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
Includes:
- AFD (Alternator Field Disconnect)
- CE Marked
- Ignition protected - Safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
- 7/8" (22.22mm) stud length to accept multiple cable terminals
- Tactile textures indicate knob position by feel only
Additional Information:
Dimensions: 9 x 7 x 3 inches
Weight: 0.54 kg
